50-ваттный усилительThis is a handy, easy to build general
purpose 50 watt amp. The amp has an input for a radio, TV, stereo or other line
level device. It also has a phono input for a record player, guitar, microphone
or other un-amplified source. With the addition of a low pass filter at the
input, it makes a great amp for a small subwoofer.

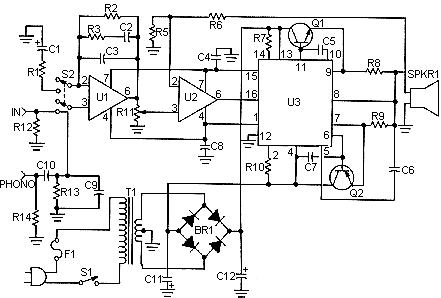

Schematic
Parts
R1 ....................... 200 Ohm 1/4 W Resistor
R2 ....................... 200K 1/4 W Resistor
R3 ....................... 30K 1/4 W Resistor
R5 ....................... 1K 1/4 W Resistor
R6 ....................... 5K 1/4 W Resistor
R7,R10 ............... 1 Meg (5%) 1/2 W Resistor
R8,R9 ................. 0.4 Ohm 5 W Resistor
R11 ..................... 10K Pot
R12,R13 ............. 51K 1/4 W Resistor
R14 ..................... 47K 1/4 W Resistor
C1 ....................... 100uF 35V Electrolytic Capacitor
C2 ....................... 0.011uF Capacitor
C3 ....................... 3750pF Capacitor
C4,C6 ................. 1000pF Capacitor
C5,C7,C8 ........... 0.001uF Capacitor
C9 ....................... 50pF Capacitor
C10 ..................... 0.3uF Capacitor
C11,C12 ............. 10,000uF 50V Electrolytic Capacitor
U1,U2 ................. 741 Op Amp
U3 ....................... ICL8063 Audio Amp Transister Driver thingy
Q1 ....................... 2N3055 NPN Power Transistor
Q2 ....................... 2N3791 PNP Power Transistor
BR1 .................... 250 V 6 Amp Bridge Rectifier
T1 ....................... 50V Center Tapped 5 Amp Transformer
S1 ....................... SPST 3 Amp Switch
S2 ....................... DPDT Switch
F1 ....................... 2 Amp Fuse
SPKR1 ................ 8 Ohm 50W Speaker
MISC ................... Case, Knobs, Line Cord, Binding Posts Or Phono Plugs
(For Input And Output), Heatsinks For Q1 And Q2
